Vibration Graphite For Graphite Mold
Your Solution for Reliable Graphite Electrodes: Vibrated Graphite For Graphite Electrodes from SHJ
Description

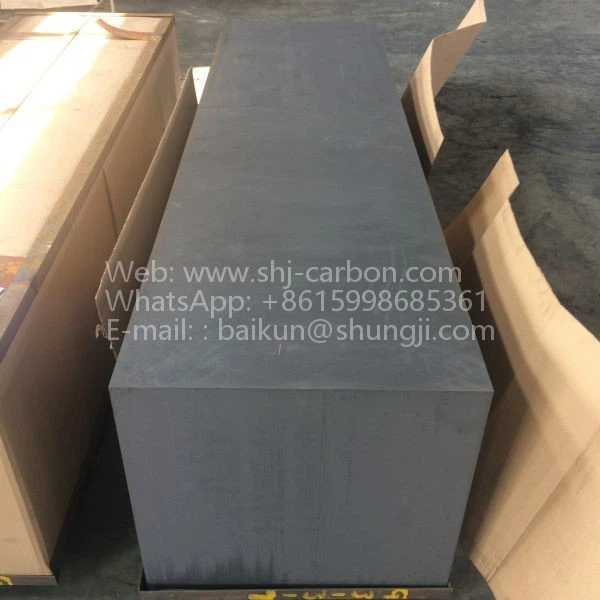

Vibration Graphite (medium-grained graphite) is a graphite material made of graphite raw materials, with the maximum grain size ranging from 0.8 to 2.0 mm. The shapes mainly are graphite cylinder and graphite cube.
it is featured with good conductivity, heat conductivity, corrosion resistance, and high-temperature resistance.
Applications: Foundry, chemical industry, electronics, nonferrous metals, high-temperature treatment, ceramics, refractory materials, and other industries.
|
Grade |
MV-12 |
MV-13 |
MV-20 |
|
|
Type of Forming |
Unit |
Vibro-molded |
Vibro-molded |
Vibro-molded |
|
Bulk Density |
g/cm³ |
1.72 |
1.73 |
1.65 |
|
Specific Resistance |
μΩ.m |
9 |
8.5 |
11 |
|
Compressive Strength |
MPa |
30 |
35 |
28 |
|
Flexural Strength |
MPa |
13 |
15 |
9 |
|
C.T.E (RT-600℃) |
10-6/℃ |
3.2 |
3.3 |
N/A |
|
Thermal Conductivity |
W/(m.k) |
100 |
130 |
N/A |
|
Ash |
% |
0.2 |
0.12 |
0.25 |
|
Maximum Grain Size |
mm |
0.8 |
0.8 |
2 |
|
Regular Size |
Blocks: 500*500*(1800/1850), 650*(500/600)*(1800/1850/2200), 800*500*1850, 950*500*1850, 1100*400*2200, 1250*450*2200. |
|||
|
The above properties are typical values, not guaranteed, other specifications are available. |
||||
