Carbon and Graphite Solutions for Vacuum Furnaces
In high-temperature vacuum furnace applications, maintaining a clean and efficient hot zone is more than a technical challenge-it's directly tied to product quality, equipment lifespan, and operational stability. Yet many manufacturers still face recurring issues: carbon contamination, inconsistent heating profiles, frequent replacement of graphite insulation, or failure of carbon-carbon composite (CFC) fixtures.
At SHJ-CARBON, we understand these challenges from the inside out. With over two decades of experience in graphite materials and CFC solutions, we provide more than just parts-we deliver fully engineered hot zone systems designed for reliability, ease of maintenance, and long-term cost efficiency. From graphite heating elements and thermal shields to custom-designed structural components, every product is optimized for performance under extreme vacuum and temperature conditions.
Vacuum Furnace Hot Zone Services

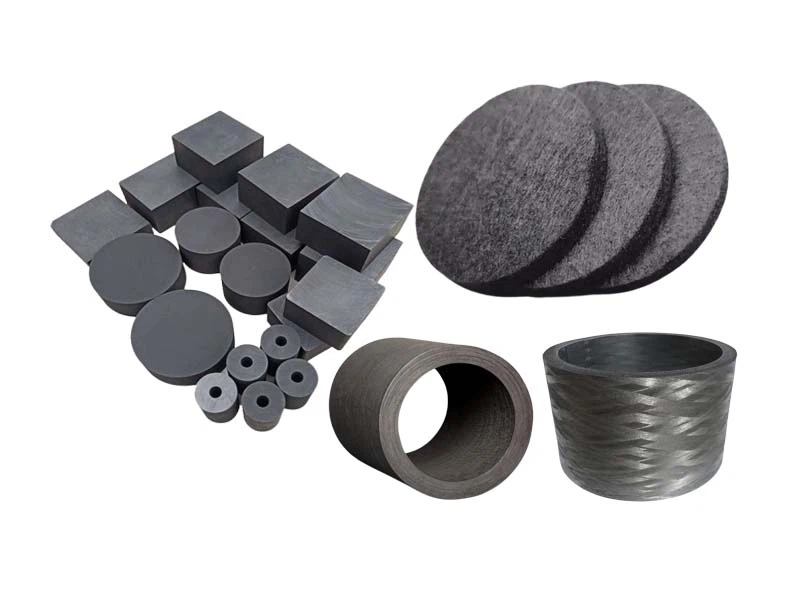

Material Selection & Installation
Proper selection and precise installation of graphite products, CFC parts, and insulation materials are critical to maintaining the integrity of the hot zone. SHJ provides expert guidance on the best materials for your application, including upgrades and replacements of thermal shields, insulation felts, and heating elements. Our on-site installation service guarantees correct alignment and system integrity, reducing risks of hot spots and contamination.
Performance Optimization and Upgrades
SHJ specializes in upgrading and optimizing existing vacuum furnace hot zones. This includes system retrofits-such as insulation replacement, heating element redesign, and process-specific adaptations based on evolving application needs. Our solutions focus on improving temperature uniformity, enhancing energy efficiency, and reinforcing structural reliability. With customized heating structures, tailored insulation systems, and simulation-based validation, we help clients achieve more stable processes and better product consistency.
Fault Diagnosis & Maintenance
SHJ offers targeted diagnostic and maintenance services for vacuum furnace hot zones. We help identify common issues such as uneven temperature distribution, reduced insulation performance, and premature material wear. Based on furnace condition and application needs, we provide tailored solutions-including heating zone adjustments, insulation upgrades, and structural refurbishments-to restore thermal stability and extend component life. Our service approach focuses on minimizing downtime and ensuring long-term process reliability.
Maintenance & Replacement Services
Regular inspection and timely replacement of graphite, CFC components, and insulation materials are essential to furnace performance. SHJ provides tailored maintenance programs focused on energy-saving measures and economic efficiency analysis, ensuring your furnace operates at peak efficiency while controlling operating costs. Whether you need part replacement, system refurbishment, or full hot zone overhaul, our team is ready to support you.
One-stop Graphite & Carbon composites solution in China
We know heat treatment - because we've been in it, not just selling graphite.
Lifespan, purity, lead time? We've solved them all.
No guesswork - we deliver matched solutions, fast.
Materials for Vacuum Furnace Hot Zones
In vacuum furnace systems, the performance and reliability of hot zone materials directly impact process consistency, equipment lifespan, and operational efficiency. SHJ-CARBON supplies a full range of graphite and carbon-carbon composite (CFC) materials tailored for demanding thermal environments. From insulation to heating and structural support, our materials are engineered for precision and endurance in high-temperature, vacuum, and inert gas conditions.

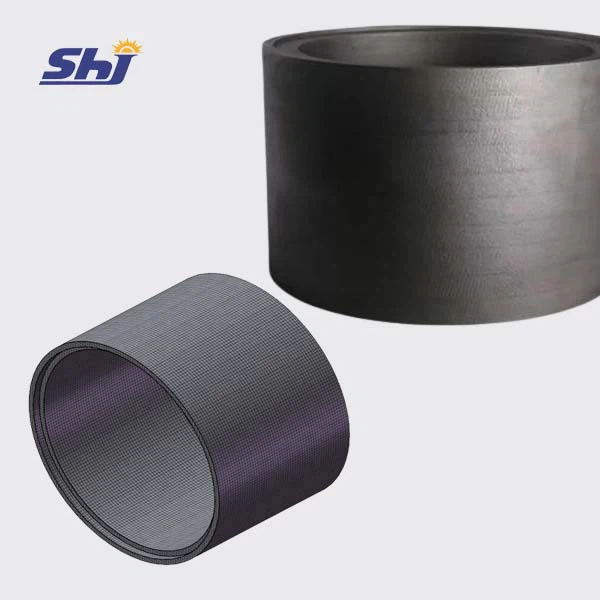

Thermal insulation material
We specialize in graphite, carbon felt, and carbon materials for vacuum furnace thermal insulation, providing high-performance solutions tailored to your needs:
Graphite Insulation: High-purity graphite offers excellent thermal conductivity and stability up to 2800°C, ensuring efficient heat distribution and minimal energy loss.
Carbon Felt: Carbon felt provides low thermal conductivity and exceptional thermal shock resistance, ideal for high-temperature vacuum environments. Custom processing ensures optimal density and thickness for your specific furnace requirements.
Carbon Materials: Our carbon-based materials excel in thermal shock resistance and high-temperature stability, improving energy efficiency and product quality in demanding applications.

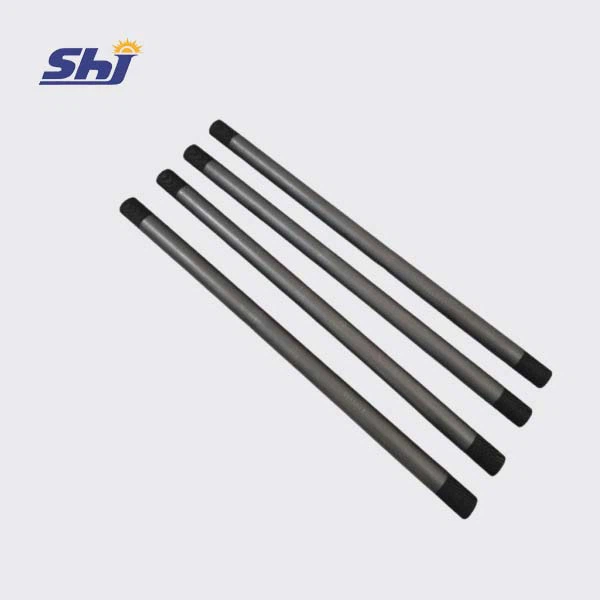

Heating element
Our high-performance heating elements are crafted from premium materials, providing reliable and stable heating even at extreme temperatures:
- Fine Grained Graphite & CFC Materials: Engineered for exceptional thermal stability in vacuum and inert gas environments, capable of withstanding temperatures up to 2800°C.
- Advanced Customization: We tailor the heating elements' design to your furnace's specific requirements, ensuring fast response times and precise temperature control for critical processes like sintering, brazing, and crystal growth.

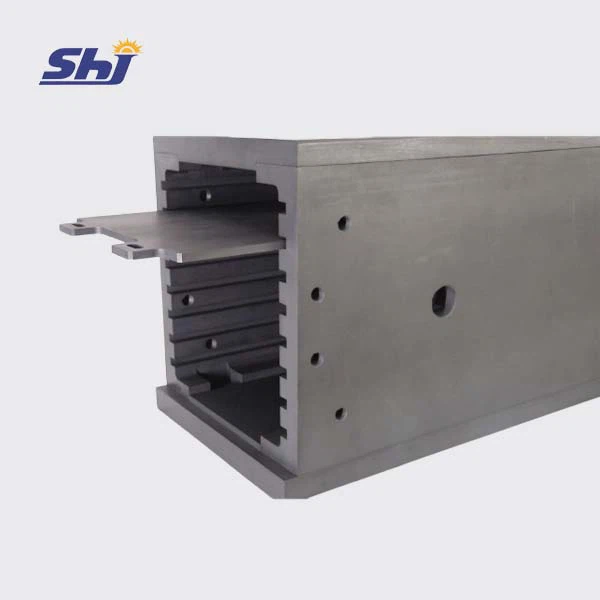

Thermostatic cylinder (crucible)/box
We specialize in custom thermostatic cylinders and crucibles, providing durable and efficient solutions for high-temperature processing:
- Fine Grained Graphite & CFC Materials: Our crucibles are crafted from materials offering excellent thermal shock resistance and stability up to 2800°C.
- Precision-Made: Designed to ensure uniform heat retention, these cylinders and crucibles deliver consistent results for demanding applications such as semiconductor manufacturing and high-purity material processing.
Furnace siege components and trays
Our custom furnace siege components and trays are engineered for enhanced performance under extreme conditions:
Load-Bearing Capacity: We use high-strength graphite and CFC composites that ensure reliable support and stability in high-temperature environments.
Optimized for High-Temperature Transmission: These components are designed for superior heat conduction and enhanced structural integrity, ensuring consistent furnace performance during high-temperature operations.
Durable Tooling: We manufacture heat-resistant trays and components that maintain strength and stability, even under the most demanding furnace conditions.
One-Stop Customization for Vacuum Furnace Solutions
Facing uneven temperatures, outdated configurations, or rising performance demands? Our one-stop vacuum furnace service delivers precision-engineered upgrades tailored to your exact application. We address four core need：
SHJ CARBON Core Services
Temperature Uniformity:
Modify heating elements to correct hot zones and improve product consistency.
Chamber Resizing:
Upgrade load capacity to match larger or reconfigured product specs.
High-Temperature Retrofitting:
Elevate existing low-temp furnaces to meet new process temperature requirements.
Consumable Longevity:
Redesign C-series components to significantly extend service life
Our process is data-driven and scenario-specific:
1. Custom Heating Zone Design for thermal balance and uniform treatment results;
2. Tailored Heating Systems to match ramp profiles and power needs;
3. Multi-layer Thermal Insulation to reduce energy loss and optimize efficiency;
4. Structural Reinforcement for high-temp reliability and load-bearing stability;
5. 3D Thermal Simulation & Validation to ensure real-world performance before delivery;
Core Graphite & CFC Components for Vacuum Sintering Furnaces
Choose the plan that suits you best.
Advanced Carbon & Graphite Services for Vacuum Furnace Optimization
SHJ-CARBON combines high-performance carbon materials and graphite expertise with engineered thermal solutions for lasting furnace performance. Our hot zone redesigns, material upgrades, and predictive maintenance have helped clients reduce downtime and extend component life. Discover case studies showcasing our failure diagnostics, thermal uniformity improvements, and cost-efficient retrofits-proven results that validate our technical leadership.
Real Case 1. | Improving Temperature Uniformity in Vacuum Furnace Hot Zone
-
Customer Challenge
A client using a high-temperature vacuum furnace for critical sintering processes reported a noticeable decline in temperature uniformity within the effective heating zone. This instability was affecting process accuracy and led to inconsistent product results-posing a serious risk to production quality.
-
SHJ-CARBON's Solution
Our technical team conducted a full assessment of the hot zone structure and quickly identified thermal leakage at the chamber entrance. We redesigned and installed custom sealing rings at the furnace door, effectively stabilizing the internal environment.
This upgrade not only restored uniform temperature distribution, but also ensured that the furnace could consistently meet the required process temperature range-improving overall yield and reducing scrap.
Real Case 2. | Enhancing Structural Reliability and Cooling Uniformity in Vacuum Furnace
-
Customer Challenges
A client experienced multiple failures of the load-bearing beam during vacuum furnace operation, indicating insufficient load capacity. Meanwhile, the furnace's original design caused uneven cooling in the lower section, impacting process consistency. Additionally, ceramic parts were breaking frequently, causing downtime and maintenance issues.
-
SHJ-CARBON's Solution
We performed a detailed static structural analysis to redesign and strengthen the load-bearing beams, significantly increasing their durability and reliability under high stress. By adjusting the furnace's lower structure and dimensions, we optimized the airflow and heat dissipation to achieve more uniform cooling, which enhances process stability. Through stress analysis, we improved the design of ceramic components, minimizing fragmentation and extending service life-reducing maintenance frequency and costs.
Real Case 3. | Vacuum Furnace Structural Upgrade for Higher Temperature Operation
-
Customer Challenge
The customer required a major upgrade to their vacuum furnace to increase the maximum operating temperature from 2150 ℃ to 2350 ℃, aiming to support more demanding high-temperature processes without compromising equipment reliability.
-
SHJ-CARBON's Solution
We completely revamped the furnace's hot zone structure, selecting advanced carbon and graphite materials optimized for extreme conditions. This structural upgrade not only enabled a stable operating temperature increase to 2350 ℃ but also ensured safe operation up to 2450 ℃ for short-term peak processes. Our solution enhanced furnace longevity while meeting the customer's high-temperature performance goals.
Decades of Expertise – Your Reliable Partner in Hot Zone Solutions
For over 25 years, SHJ-CARBON has been a trusted provider of high-performance graphite and carbon-based solutions for vacuum furnace applications. Our experienced engineering team delivers more than just materials – we provide comprehensive support including failure analysis, thermal system optimization, and performance upgrades to extend equipment lifespan and improve process stability.
With a proven track record in hot zone design, material selection, and system retrofits, we help manufacturers worldwide address critical challenges such as component cracking, thermal inconsistency, and premature wear. From initial consultation to final implementation, our technical specialists ensure your furnace operates at peak efficiency throughout its service life.
