Graphite Hot Zone Components & Replacement Parts

Explore graphite hot zone components for vacuum furnaces, including heating elements, graphite felt insulation, machined graphite parts and CFC fasteners. SHJ CARBON reviews component inquiries using drawings, technical specifications and furnace operating conditions; available supply and documentation are confirmed for each request.

Already have a part number or drawing? Explore the product list below or share the component dimensions, material requirements, quantity and intended application for a quotation.

Graphite hot zone components in a vacuum furnace assembly

Component references are illustrative. Final materials and dimensions must be confirmed for each furnace design.

Find the Right Hot Zone Component

Start with the part you need rather than a full-furnace service package. Each product family has different material, dimensional and operating requirements.

Graphite Heating Elements

Graphite heater tubes, rods and custom shapes. Confirm geometry, electrical requirements and connection interfaces before ordering.

Explore Heaters

Graphite Felt & Insulation

Graphite soft felt, rigid insulation and formed parts. Review thickness, grade, atmosphere and fitting details.

Explore Insulation

Machined Graphite Parts

Plates, shields, supports and components machined against confirmed drawings and tolerances.

Explore Graphite Parts

CFC Structural Components

Selected carbon-carbon composite profiles, fasteners and supporting parts for compatible assemblies.

Explore CFC Parts

Graphite Hot Zone Components by Category

Use these four reference image groups to navigate heating components, machined graphite parts, insulation and CFC spares. The images do not establish compatibility with a specific furnace.

Graphite heating elements used in a vacuum furnace hot zone

Heating Components

Graphite elements and conductive parts specified according to furnace configuration.

Graphite hot zone chamber and furnace structural elements

Machined & Structural Parts

Graphite plates, supports and custom components made for specified assembly needs.

Graphite insulation arrangement in an industrial hot zone

Graphite Insulation Parts

Soft or rigid graphite insulation options, selected according to temperature and atmosphere.

CFC carbon-carbon composite bolts and fasteners for furnace hot zones

CFC Hot Zone Parts

Carbon-carbon fasteners and related structural components; check geometry, load and atmosphere requirements.

Next step: Browse the CMS product listings immediately below and use Add to Inquiry for individual items. For a multi-part order or an unusual geometry, send a drawing or part list.

  • CFC Threaded Rods & Screws

    CFC Threaded Rods & Screws

    Discover the Superior Benefits of CFC Products for Your Vacuum Furnace ApplicationsIn the demanding world of high-temperature processing, the choice of materials for your vacuum furnace components is

    Add to Inquiry
  • Graphite Felt Insulation For Vacuum Furnace Hot Zones

    Graphite Felt Insulation For Vacuum Furnace Hot Zones

    Superior Thermal Insulation for Hot Zones: Our graphite felt insulation provides efficient thermal insulation in vacuum furnace hot zones, maintaining consistent temperatures and reducing

    Add to Inquiry
  • Graphite Temperature Control Barrel For Vacuum Furnace

    Graphite Temperature Control Barrel For Vacuum Furnace

    Ensure Precision Temperature Control in Your Vacuum Furnace Precision Selection and Customization for Optimal Thermal Performance At SHJ CARBON, we specialize in providing high-quality Graphite

    Add to Inquiry
  • Machined Graphite Plates For High-Temperature Furnace

    Machined Graphite Plates For High-Temperature Furnace

    High-purity, fine-grain graphite ensures **minimal contamination** and **consistent performance** in **vacuum and sintering furnaces**. Precision CNC-machined to custom specifications, **graphite

    Add to Inquiry
  • Graphite Heating Tube For Hot Zone Spares

    Graphite Heating Tube For Hot Zone Spares

    Isostatic Graphite Material: Made from high-quality Isostatic Graphite, offering excellent heat resistance and durability. Custom Sizes: Machined to fit your furnace system, available in diameters

    Add to Inquiry
  • Custom CFC Carbon-Carbon Composite Profiles

    Custom CFC Carbon-Carbon Composite Profiles

    High-Temperature Structural StabilityCFC carbon-carbon composite profiles maintain strength and shape up to 2,000°C in vacuum or inert atmospheres, keeping door edges and hot-zone frames stable

    Add to Inquiry
  • CFC Products in Powder Metallurgy Hot Pressing Applications

    CFC Products in Powder Metallurgy Hot Pressing Applications

    Discover the unparalleled performance of Carbon-Carbon Composite (CFC) products in the demanding world of powder metallurgy hot pressing. Engineered to withstand extreme conditions, CFC materials

    Add to Inquiry
  • Graphite Hot Zone for Semi-con

    Graphite Hot Zone for Semi-con

    We produce and supply processed graphite products for application of semiconductor industry.

    Add to Inquiry

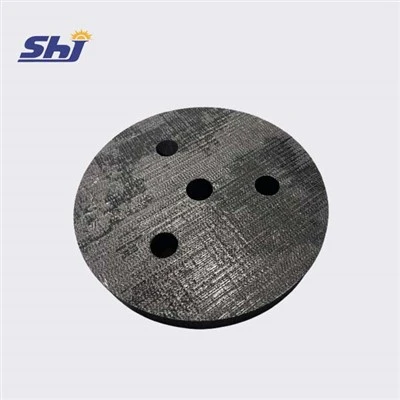

  • CFC Plates for MIM Vacuum Furnace | Cut-to-Size C/C Plates

    CFC Plates for MIM Vacuum Furnace | Cut-to-Size C/C Plates

    Carbon carbon composite materials are the new frontier in material science – offering unparalleled strength, endurance, and versatility. Whether you're looking for a material that can withstand the

    Add to Inquiry
First 12 Last 1/2

How to Specify Replacement Hot Zone Parts

Vacuum furnace hot zone reference for identifying graphite and insulation replacement parts

Confirm the Part, Not Just the Furnace Model

The furnace nameplate helps identify equipment, but rarely provides enough information to specify a replacement graphite or insulation part. Include a drawing, dimensioned photographs or the original component specification wherever possible.

Information to Include With Your Inquiry

  • Furnace and process: furnace type, operating temperature range, vacuum level or process atmosphere.
  • Component definition: location, existing drawing, shape, dimensions, material grade or original part number.
  • Functional requirements: heater connections, structural loads, mating interfaces or insulation installation details.
  • Purchasing requirements: quantity, destination, inspection documentation and required delivery window.

No drawings yet? Start with photographs, key measurements and the operating conditions. Design reconstruction or on-site measurement, if needed, requires separate discussion and confirmation.

Start Parts Inquiry

Technical Information Buyers Can Verify

Supplier confidence comes from practical and traceable product information, not unsupported claims about universal performance or lead time. These are the checks we encourage before confirming a hot zone parts order.

Material Grades & Test Conditions

Compare published graphite, soft felt, rigid felt and CFC grades. Confirm available material, property units and test conditions for the selected grade.

Hot Zone Material Specifications

Product-Specific Fit

Use product pages as purchasing references, then confirm dimensions, drawing revisions, operating atmosphere and functional interfaces for your actual component.

Inspection & Documentation

Discuss dimensional inspection, material reports, traceability or special tests before ordering. Documentation availability depends on the agreed scope.

Quality Documents Guide

Clear Commercial Scope

Confirm quantity, tolerances, manufacturing feasibility, accepted drawing revision, delivery terms and any required quality documents in the quotation.

Material property tables describe individual grades under defined test conditions. They do not guarantee a complete furnace temperature, energy saving, service life or temperature-uniformity result.

What Can Be Verified Before Ordering?

Publicly Available References

Review existing product pages and the published material specifications to identify relevant component families and the properties requiring confirmation.

Confirmed for Your Purchase

Ask us to confirm the selected material grade, approved drawing revision, manufacturability, inspection method and available documentation in the quotation. Batch reports and special tests are not assumed unless agreed.

Technical guides explain evaluation methods; they are not substitutes for order-specific certificates, measurement records or an accepted inspection plan.

From Component Inquiry to Quotation

A clear quotation workflow helps buyers avoid ordering the right-looking part in the wrong grade, dimension or configuration. The steps below show how a typical graphite hot zone parts inquiry moves from initial review to supply confirmation.

01

Identify the Parts

Select a product family or send existing drawings, item lists or photographs so the inquiry starts with the actual component rather than only the furnace model.

02

Confirm Technical Fit

Review material grade, dimensions, operating temperature, atmosphere, component interfaces and any inspection or quality-document requirements before quotation.

03

Agree Quotation Scope

Confirm supply items, quantities, tolerances, inspection documents, commercial terms and delivery conditions so the quotation reflects the actual purchasing scope.

04

Proceed With Supply

After approval, proceed with the agreed supply scope and keep any packaging, marking, inspection or delivery requirements aligned with the quotation and destination.

Related Engineering & Procurement Guides

These technical articles support specification and supplier evaluation. Detailed grades, test conditions and engineering services remain on their respective pages.

Graphite heating component reference image

Graphite Heating Element Design Guide

Understand geometry, electrical interfaces and information needed to specify a graphite heater.

Graphite component inspection reference image

Quality Documents for Graphite Parts

Prepare material, dimension and traceability document requirements for a component inquiry.

Isostatic graphite material reference image

What Is Isostatic Graphite?

Review a graphite grade category commonly considered for machined high-temperature components.

Request a Graphite Hot Zone Parts Quote

Need graphite hot zone components for a vacuum furnace? Describe the required heating elements, insulation or CFC parts, and share available drawings or dimensions, material requirements, quantity, operating conditions and delivery country. A complete engineering package is helpful, but not essential for an initial conversation.

For an individual item, you can also use Add to Inquiry in the product listings above. If the contact form does not support attachments, ask our team how to share drawings securely. Do not submit confidential files through an unapproved channel.

We're well-known as one of the leading graphite hot zone manufacturers and suppliers in China. If you're going to buy high quality graphite hot zone for sale, welcome to get free ample from our factory. For price consultation, contact us.
