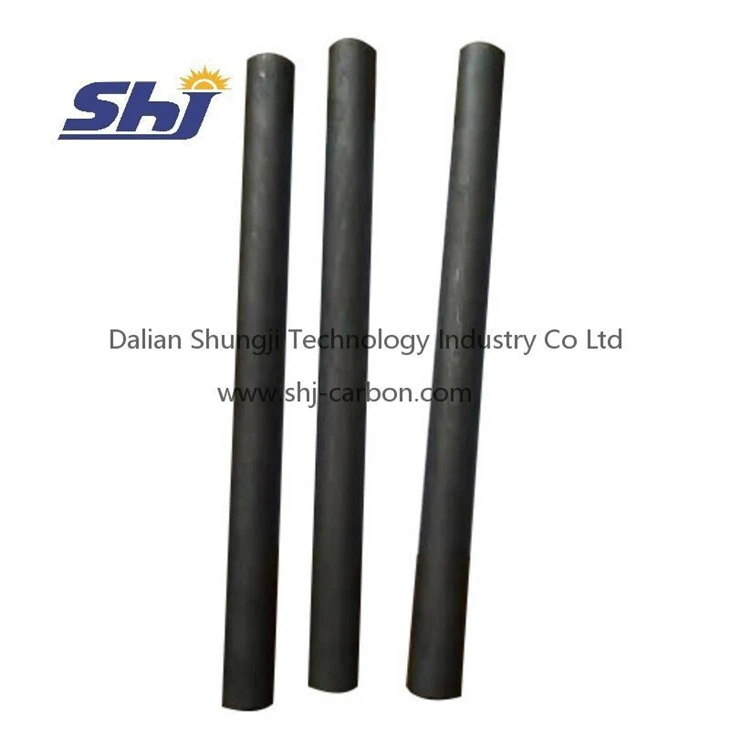

Low Porosity Extruded Graphite Rod
The Extruded Graphite is resistant to high temperatures, has good electrical conductivity, does not break easily, In addition, the graphite materials are often used as heating elements in high-temperature vacuum furnaces.. Please feel free to contact us for any further information.
Description
Low Porosity Extruded Graphite rod
The Extruded Graphite is resistant to high temperatures, has good electrical conductivity, does not break easily, In addition, the graphite materials are often used as heating elements in high-temperature vacuum furnaces.
Specifications
|
Grade |
MV-12 |
MV-13 |
MV-20 |
ME-11 |
|
|
Type of Forming |
Unit |
Vibro-molded |
Vibro-molded |
Vibro-molded |
Extruded |
|
Bulk Density |
g/cm³ |
1.72 |
1.73 |
1.65 |
1.73 |
|
Specific Resistance |
μΩ.m |
9 |
8.5 |
11 |
8 |
|
Compressive Strength |
MPa |
30 |
35 |
28 |
37 |
|
Flexural Strength |
MPa |
13 |
15 |
9 |
18 |
|
C.T.E (RT-600℃) |
10-6/℃ |
3.2 |
3.3 |
N/A |
2.4 |
|
Thermal Conductivity |
W/(m.k) |
100 |
130 |
N/A |
N/A |
|
Ash |
% |
0.2 |
0.12 |
0.25 |
0.2 |
|
Maximum Grain Size |
mm |
0.8 |
0.8 |
2 |
0.8 |
|
Regular Size |
Rods: Dia 400mm, Dia 440mm, Dia 500mm and Dia 600mm, length 1800~2100mm. |
||||
|
The above properties are typical values, not guaranteed, other specifications are available. |
|||||
