Molded Graphite

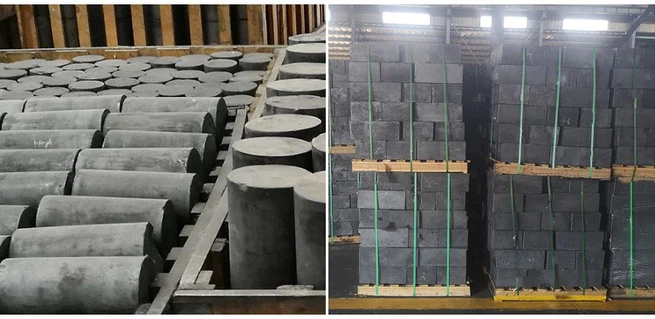

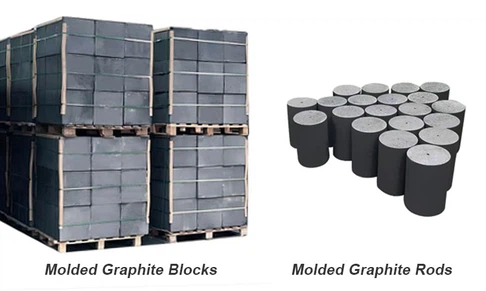

We supply high quality molded graphite materials as blocks and rods, we select materials for customers based on our own experimental database.

Send Inquiry

Description

Die-Molded Graphite High Density High Compression Strength

We supply high quality molded graphite materials as blocks and rods, we select materials for customers based on our own experimental database. We are familiar with the characteristics of molded graphite materials at home and abroad, and provide more cost-effective products on the basis of satisfying customer applications.

Molded Graphite

Specifications

Grades	Bulk Density	Specific Resistance	Flexural Strength	Compressive Strength	Shore Hardness	Ash	Grain Size
Grades	g/cm³	μΩ.m	MPa	MPa	HSD	%	μm
FM-12	1.75	10	35	65	42	0.05	14-20
FM-13	1.85	9	45	85	48	0.05	14-20
FM-22	1.80	8--13	38	75	45	0.1	13
FM-23	1.85	8--13	40	85	50	0.1	13

Product Description

Die molded graphite is produced by putting the paste materials into molds of different shapes and sizes, compressing them into mold shape by applying pressure in the up and down directions respectively or at the same time, and then manufacturing them through baking, impregnation, graphitization and other processes.

Product Features

It is widely used because of its superior high temperature resistance, oxidation resistance, high strength, electrical conductivity and good thermal shock resistance.

Product Application

It is suitable for: graphite boat, plate, crucible and other processed products for lithium battery anode, sodium battery, lithium iron phosphate cathode and other purposes, mold for exothermic welding, powder metallurgy sintering, pouring mold, float glass, bearing plate in vacuum furnace, etc.

Basic Production Steps

Raw material crushing	Screening	Premix and knead	Molding
Baking	Impregnation	Rebaking	Graphitization

Packaging and Shipping

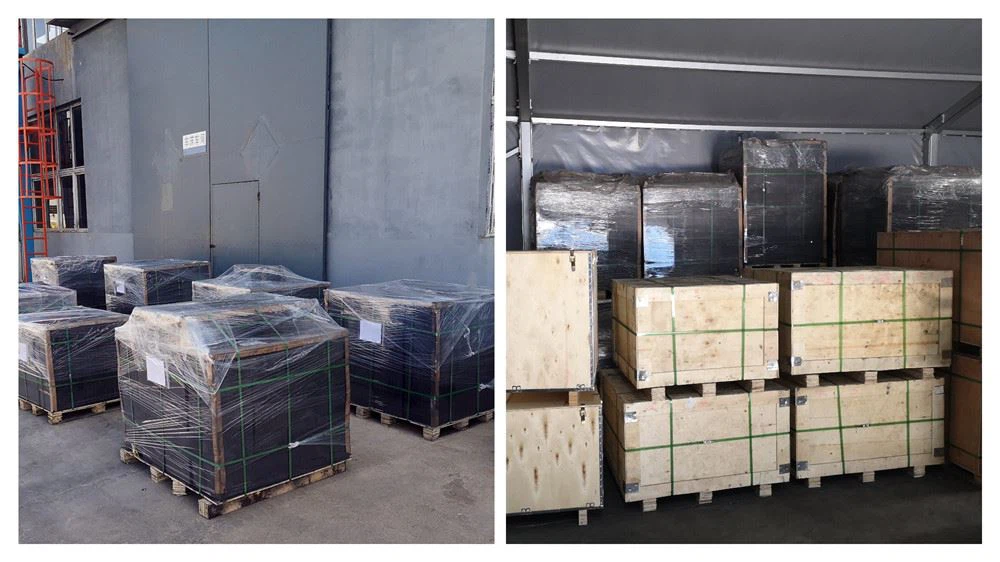

Customized packaging according to customer needs, wooden box, pallet packaging methods are available.

Molded Graphite

According to the cargo weight and delivery requirements, choose the most cost-effective transportation method, express, sea, airway, railway, multimodal transportation are available.
