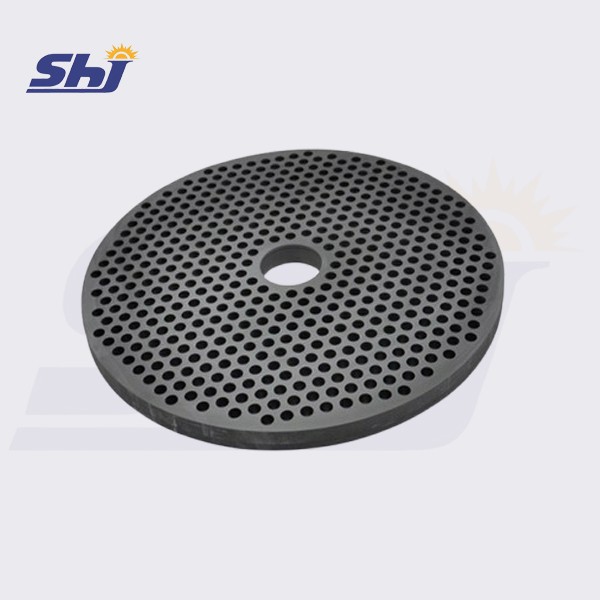

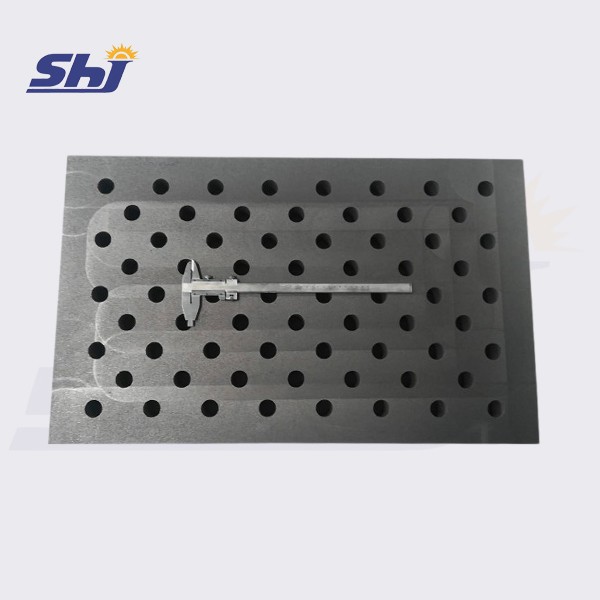

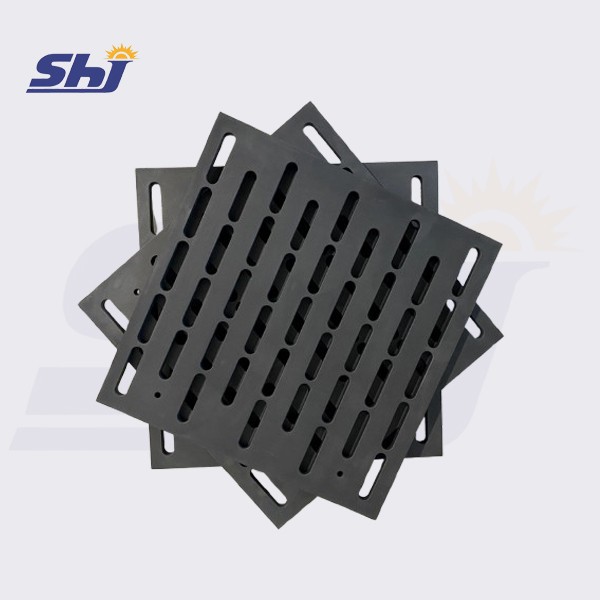

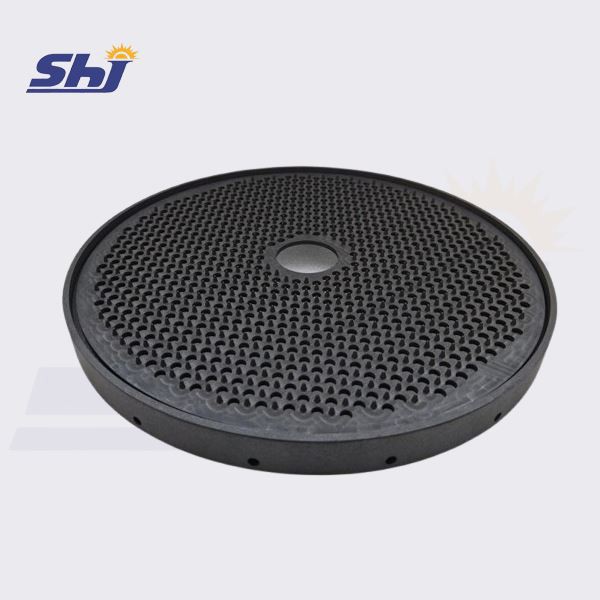

Machined Graphite Plates For High-Temperature Furnace
- High-purity, fine-grain graphite ensures **minimal contamination** and **consistent performance** in **vacuum and sintering furnaces**.
- Precision CNC-machined to custom specifications, **graphite plates** can be tailored to fit **square, rectangular, or complex multi-layer designs** for specific furnace setups.
- Optimized for **uniform heat distribution**, graphite plates support **consistent thermal performance**, minimizing part deformation during high-temperature cycles.
- Featuring **high strength** and **excellent thermal shock resistance**, our graphite plates deliver **long-lasting durability** in the harshest furnace environments.
- Available as **complete furnace fixture systems**, including **matching posts, risers, support plates, and rack assemblies**, for a fully integrated solution.
Description
High Purity Custom Graphite Trays for Vacuum & Sintering Furnaces
SHJ CARBON supplies high purity, high-density graphite plates engineered for vacuum furnaces, sintering lines, MIM processing, and high-temperature thermal treatment.
Our graphite plates are designed to maintain mechanical stability, thermal uniformity, and low contamination during repeated heating cycles.
We machine graphite plates according to customer dimensions, load requirements, and furnace configuration, ensuring long-term reliability under demanding thermal environments.We support customers in defining the most efficient graphite plate or tray layout by evaluating:
- Furnace chamber size and thermal field distribution
- Component shape, weight, and packing density
- Required output and batch processing parameters
Engineered for High-Temperature Stability and Dimensional Precision
Graphite plates serve as structural and support components inside industrial furnaces, where process atmospheres require low impurity and minimal distortion.
Key performance advantages include:
- Thermal stability up to 3000°C in inert/vacuum atmospheres
- Isotropic structure, providing consistent strength in all directions
- Low thermal expansion, preventing warping during repeated cycling
- High purity and reduced contamination for critical materials
- Stable mechanical support for batch loading and component fixtures
These properties make graphite plates suitable for precision sintering and controlled heat treatment workflows.
Expert Material Selection for Graphite Plates and Furnace Fixtures
At SHJ CARBON, we understand that selecting the right material for your furnace fixtures is crucial for ensuring optimal performance and durability. With extensive experience in high-temperature environments, we offer a wide range of graphite grades tailored to meet the specific demands of each application. Whether you need high-density isostatic graphite for precision fixtures, or ultra-high purity grades for contamination-sensitive processes, our expertise in material selection ensures the best solution for your needs.
|
Material Type |
Advantages |
Common Use |
|
Isostatic Graphite |
High density, fine grain, high mechanical strength |
Sintering plates, precision furnace fixtures |
|
Molded Graphite |
Cost-effective, stable structure |
General furnace support plates |
|
Ultra-High Purity Grades |
Minimal ash content & contamination risk |
Semiconductor & aerospace applications |
|
SiC / Anti-Oxidation Coatings |
Extended service life in vacuum & reactive atmospheres |
High-cycle furnace operations |
Typical Applications of Graphite Plates
Metal Injection Molding (MIM)
Debinding and final sintering trays
Powder Metallurgy
Metal powders & components heat treatment
Semiconductor & Electronics
High purity thermal fixtures
Industrial Vacuum Furnaces
General heat-treating tray systems
Why Choose SHJ CARBON
With over a decade of experience in carbon and graphite solutions for industrial furnace systems, SHJ CARBON provides full in-house machining capabilities and reliable raw material sourcing to ensure consistent product quality. Our engineering team supports customers with furnace-specific design recommendations and workload optimization. Fast sampling and global shipping enable quick project validation and stable long-term supply.
25+ Years of Industry Experience
With over a decade of experience, we provide application-oriented carbon solutions tailored to different furnace types and processes.
In-house graphite machining workshops
Equipped with our own precision graphite machining facilities, we support complex custom parts and rapid prototyping.
Stable raw material supply chain
Long-term partnerships with top raw material suppliers ensure consistent quality and batch stability.
Technical support based on furnace process
We offer material selection and structural optimization based on your temperature curves, atmosphere conditions, and process workflow.
Pair Graphite Plates with CFC Baskets to Improve Cycles and Load Stability
In addition to custom graphite trays, SHJ CARBON also manufactures CFC (Carbon Fiber Composite) fixtures for high-temperature furnace systems. CFC components are engineered to deliver high strength, low weight, and excellent thermal shock resistance, making them particularly suitable for continuous and batch heat treatment environments.
CFC fixtures are recommended for heat treatment operations where cycle repeatability, reduced mass, energy efficiency, and long-term durability are critical requirements. SHJ CARBON provides engineering support to analyze furnace conditions, part geometry, and workload patterns to determine when CFC is the optimal complement to graphite fixtures.
If you are considering upgrading your current workload support system to improve throughput stability or reduce maintenance frequency, we can provide a comparative evaluation and configuration proposal based on your furnace application.
