High-Density Graphite Heater
Technical Specifications
Material Grades: Isostatic graphite, high-density graphite, high-purity options available
Max Operating Temp: Up to 3000°C in vacuum environments
Surface Options: Polished, coated (Si, Ti), machined tolerance ±0.05 mm
Joint Design: Tapered or bolted interfaces for easy assembly
Description
High-Density Graphite Heater for Vacuum Furnace Applications
A graphite heater sits at the core of any high-temperature thermal field inside a vacuum furnace. When operators need stable performance, fast heating, and clean thermal conditions, a high-density graphite heater becomes the most dependable choice. At SHJ CARBON, we design and machine graphite heating elements with the consistency, purity, and structural integrity required for demanding industrial environments. Our heaters support sintering, brazing, heat treatment, and other processes that rely on precise temperature control and efficient power distribution.
We use high-purity, high-density graphite to build heaters that maintain electrical and thermal stability at elevated temperatures. Each heater delivers uniform heat flow, long service life, and predictable behavior across multiple heating cycles. This makes our graphite heaters ideal for operators who value accuracy, reliability, and cost control inside their vacuum furnace systems.
As a graphite heater manufacturer with more than two decades of engineering experience, we produce heating elements tailored to the exact needs of modern vacuum furnaces. Whether you need a standard panel heater or a complex 3D configuration, our machining capabilities allow us to build solutions that match your furnace geometry, operating temperature, and process requirements.
Overview of Our Graphite Heating Elements
A high-density graphite heater provides dependable performance where metal or ceramic alternatives struggle. Graphite maintains strength as temperatures rise, which helps reduce deformation, breakage, and downtime. This allows furnace operators to run longer cycles, maintain tighter thermal profiles, and extend the service life of their equipment.
Our graphite heaters support a wide range of vacuum and inert gas furnaces operating above 2000°C. Their high thermal conductivity ensures fast ramp-up rates, while their low thermal expansion helps them survive rapid temperature changes. You get a stable heating source that performs consistently from the first cycle to the hundredth.
We design each heater with attention to material purity. High-purity graphite limits contamination and helps protect sensitive materials, making these heaters suitable for aerospace components, electronic materials, advanced ceramics, and high-precision manufacturing.
Consistent Performance in Extreme Temperatures
Graphite heating elements maintain stable output at operating temperatures exceeding 2200°C, making them a perfect fit for vacuum and inert gas furnaces. This stability ensures accurate thermal profiles and repeatable results in each cycle.
Rapid Heating with Uniform Thermal Distribution
High thermal conductivity allows for fast ramp rates and even heat flow across the entire heating zone. This is essential for processes that require precision, such as sintering advanced ceramics or brazing aerospace components.
Durability Against Thermal Cycling
In vacuum applications, thermal stress is a major concern. Graphite's low thermal expansion and structural resilience reduce cracking and warping, even after hundreds of heat-up and cool-down cycles.
Resistance to Contamination and Reaction
Inside vacuum chambers, purity matters. Graphite's chemical inertness minimizes outgassing and prevents interaction with sensitive materials. It's especially valuable when working with metals or semiconductors that require ultra-clean environments.
Types of Graphite Heater

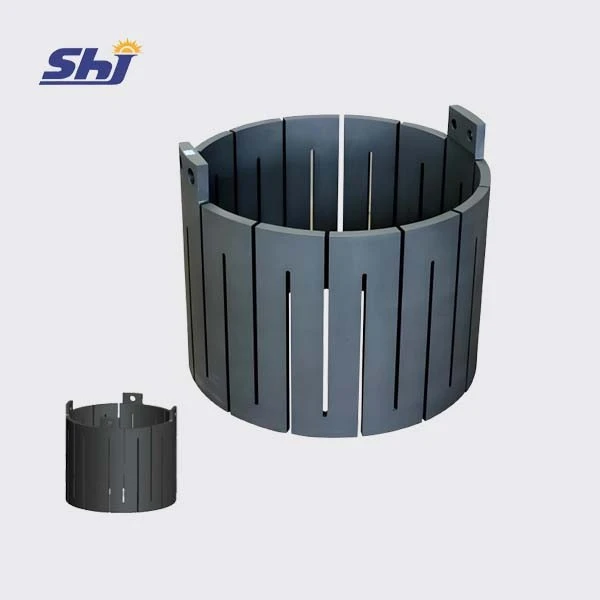

Tubular Graphite Heaters
Tubular heaters are commonly used in cylindrical or round hot zones. Their symmetrical design provides 360° uniform heating, making them ideal for sintering, annealing, and diffusion processes. These elements are easy to install and integrate into modular furnace setups.
Flat Panel Graphite Heaters
Flat heaters deliver even thermal distribution across a large surface area. They are frequently used in horizontal vacuum furnaces for applications like brazing or ceramic processing. Their geometry ensures a stable, controlled heat profile.

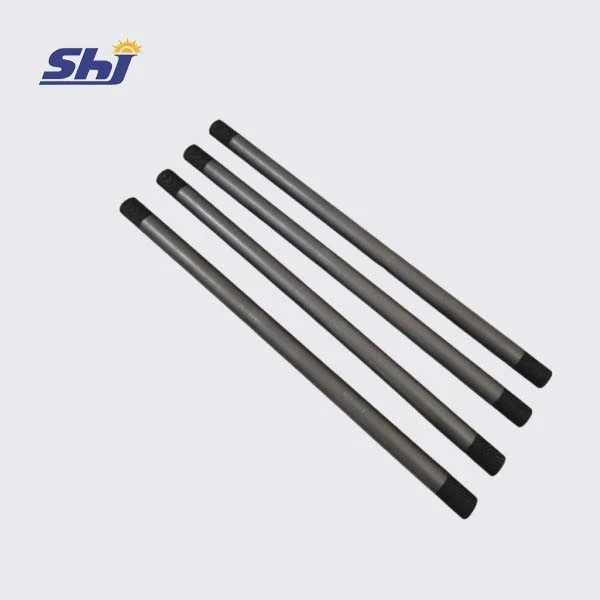

Rod and Bar Heaters
Graphite rods or rectangular bars offer a compact heating solution with high power density. These are suitable for custom furnace builds or spot heating applications. Their rigid structure performs well under high mechanical stress and frequent cycling.
Custom-Machined Heaters
We specialize in application-specific designs based on detailed furnace geometry. Whether you need curved, angled, slotted, or multi-layered configurations, our CNC machining capabilities and material expertise ensure your heating element fits and performs precisely as required.
Custom-Engineered Graphite Heating Solutions
Each vacuum furnace operates differently, so we provide custom engineering services to ensure accurate fit and optimal thermal performance. Our engineering team designs heaters based on your furnace model, process temperature, heating rate, and chamber layout.
What We Offer
Build-to-print manufacturing: We produce graphite heaters directly from your drawings or samples.
Full thermal field design: We can design the heating structure, insulation, and supporting components as a complete system.
Precision machining: Our CNC capabilities enable complex geometries and fine tolerances.
Surface treatments: We apply coatings such as Si or Ti to increase oxidation resistance.
Material selection: We recommend the optimal graphite grade for your application.
Application Areas of Our Graphite Heaters
A graphite heater provides dependable performance across a wide spectrum of high-temperature environments. SHJ CARBON supplies heating elements for industries that rely on clean, stable, and high-efficiency heat sources.
Vacuum Sintering Furnaces
Used in powder metallurgy, ceramics, and composite materials. Our heaters ensure consistent heat distribution and support the densification process.
Vacuum Brazing Furnaces
Graphite heaters deliver stable heating for joining metals in aerospace, automotive, and tooling applications. Their purity helps produce clean, oxidation-free brazed joints.
High-Temperature Chemical Reactors
Graphite offers superior corrosion resistance in chemically reactive atmospheres. Operators use our heaters in high-temperature reactors and specialty processing chambers.
Glass and Ceramics Sintering
Graphite maintains strength under rapid thermal cycling and supports consistent heat flow in glass forming, fusing, and ceramic firing applications.
Why Choose SHJ-CARBON
SHJ CARBON has over 25 years of experience manufacturing graphite heaters and thermal field components for vacuum furnaces. We focus on high-purity graphite materials and precision machining to produce heating elements that operate reliably under extreme conditions.
Advantages
- High-purity materials: Stable, clean heating for sensitive applications.
- Engineering expertise: We understand how furnace design affects heater performance.
- Custom manufacturing: We deliver solutions tailored to your process.
- Reliable global delivery: We ship worldwide with fast lead times.
- Quality assurance: Every heater undergoes strict inspection and material verification.
Our customers rely on us for heating solutions that improve furnace uptime, reduce operating costs, and support consistent manufacturing quality.
FAQ For graphite Heater
1. What makes a graphite heater suitable for vacuum furnaces?
A graphite heater delivers stable thermal performance at extreme temperatures and maintains low contamination levels, making it ideal for vacuum and inert gas furnaces.
2. Do you offer custom graphite heating elements?
Yes. We machine graphite heaters according to your drawings or process requirements, including custom shapes, slot patterns, and mounting structures.
3. Which graphite grade works best for high-temperature heating?
High-density and high-purity graphite grades-especially isostatic graphite-provide excellent thermal conductivity, low expansion, and long service life.
4. How long does a graphite heater typically last?
Service life depends on temperature cycling, atmosphere, and handling. High-density graphite and proper coatings help extend heater lifespan significantly.
5. Can graphite heaters operate above 2000°C?
Yes. Our graphite heating elements perform reliably at temperatures exceeding 2200°C in vacuum or inert gas atmospheres.
6. Are oxidation-resistant coatings available?
We offer silicon and titanium-based coatings that improve oxidation resistance and extend heater performance under partial-pressure or low-oxygen conditions.
7. What industries use graphite heaters?
Graphite heaters support vacuum sintering, vacuum brazing, ceramic firing, chemical processing, and other high-temperature applications requiring clean, uniform heat.
Call to Action - Request a Quote
If you need a dependable graphite heater for your vacuum furnace, SHJ CARBON can help. We supply high-density graphite heating elements built for stable, repeatable performance in high-temperature environments. Our team works closely with you to define the right material grade, heater geometry, and mounting design for your furnace.
We support everything from prototype development to large-scale supply. Whether you rely on vacuum sintering, brazing, ceramic processing, or advanced heat treatment, we provide heating solutions that help you maintain tight temperature control and improve production efficiency.
Contact us today for pricing, technical guidance, or custom heater designs. Our engineers will help you build a graphite heating system that supports your long-term manufacturing goals.
