High-Purity Graphite Crucible Liner | Custom Furnace Liners
- Isostatic Graphite Material: Made from high-quality Isostatic Graphite, offering excellent heat resistance and durability.
- Custom Sizes: Machined to fit your furnace system, available in diameters from 2-280 mm and lengths from 30-2000 mm.
- Efficient Heat Distribution: Ensures even heat distribution, optimizing furnace performance and improving energy efficiency.
- Long-lasting Performance: Designed to withstand high temperatures, ensuring reliability and longevity in demanding environments.
- Complete Hot Zone Solutions: Offering a range of vacuum furnace spares including graphite crucibles, electrodes, and insulation materials.
Description

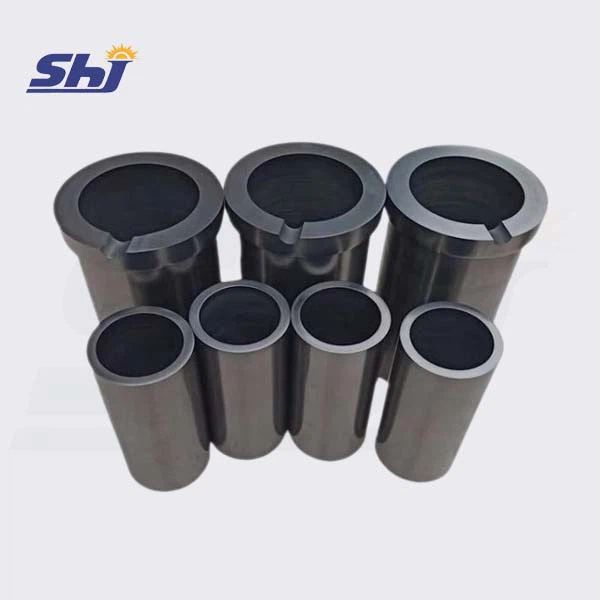

Graphite Crucible Liner for Melting, Casting & Furnace
A graphite crucible liner plays a critical role in high-temperature melting and thermal processing. It protects the furnace crucible, improves heating efficiency, and ensures a clean environment for sensitive metals and materials. SHJ CARBON designs high-purity graphite crucible liners for industrial users who need stable performance, long service life, and precise machining.
Our liners support temperatures exceeding 3000°C in vacuum or inert atmospheres, making them suitable for demanding melting, sintering, and refining processes. Whether you work with precious metals, alloys, semiconductors, or laboratory samples, we provide graphite liners engineered for clean and consistent results.
High-Density Graphite for Clean Melting
A graphite crucible liner sits inside the main crucible and forms the contact surface between the molten material and the furnace environment. Because melting applications require a low-contamination environment, material purity matters. We use high-density, high-purity graphite to minimize ash, ensure thermal stability, and maintain chemical inertness throughout each heating cycle.
The smooth internal surface reduces material adhesion, enables clean removal of molten metals, and supports uniform heat distribution across the crucible. This results in improved melt quality and fewer defects in finished parts.
Why Graphite Works Well in Furnace Systems
Graphite offers several benefits that make it ideal for crucible liners:
Excellent thermal shock resistance – Graphite handles fast heating and cooling without cracking.
High thermal conductivity – Heat spreads evenly through the liner, improving temperature control.
Chemical inertness – Graphite does not react with most metals or materials in vacuum and inert gas.
Low impurity content – Ensures metals melt without contamination.
Durable and long-lasting – Withstands repeated high-temperature cycles.
These advantages make graphite crucible liners a preferred choice for melting gold, silver, platinum, specialty alloys, and laboratory analysis samples.
Why Choose SHJ CARBON
Technology First
We offer a variety of transmission components
25+ Years of Industry Experience
Proven expertise in carbon and graphite insulation for high-tech manufacturing.
Trusted by Top Manufacturers
Long-term supplier to leading electronics, semiconductor, and solar PV companies.
Custom Engineering Support
Tailored designs in boards, cylinders, and complex 3D shapes to match exact specifications.
Advanced Production & Purification
Secondary high-temperature treatment up to 2800 °C for exceptional purity.
Custom Sizes for Industrial Furnaces
Every furnace system is different, so we manufacture graphite crucible liners according to your exact size requirements.
Common parameters we customize include:
- Inner and outer diameter
- Wall thickness
- Bottom design (flat, round, cone-shaped)
- Length and taper angle
- Surface smoothness
- Coating options (SiC, TiC)
We support small laboratory crucibles and large industrial furnace liners up to several hundred millimeters in diameter. Our machining accuracy ensures reliable fitting and smooth integration with your furnace setup.
FAQ for Graphite Furnace Tube
1. What materials can I melt using a graphite crucible liner?
You can use graphite liners for precious metals, specialty alloys, copper, aluminum, and most metals that require a clean and stable melting environment.
2. Can you machine liners based on my furnace drawing?
Yes. We manufacture liners according to your drawings or provide design guidance based on your furnace model.
3. Do graphite crucible liners work with induction furnaces?
Yes. Graphite conducts heat efficiently and performs well in both induction and resistance furnace systems.
4. How do I choose between isostatic and molded graphite?
Isostatic graphite is recommended for high-purity or high-temperature applications. Molded graphite works well for general melting processes where cost efficiency matters.
5. Do graphite liners require any special coating?
A SiC or TiC coating can increase oxidation resistance and extend service life, especially in partial-pressure or low-oxygen environments.
6. How long does a graphite crucible liner last?
Service life varies by temperature, atmosphere, and frequency of thermal cycling. High-density graphite typically supports long-term operation with minimal wear.
7. Can graphite crucible liners be used in laboratory furnaces?
Yes. We supply liners for analytical furnaces used in metallurgical testing, material analysis, and research labs.
